BTF-LIGHTING WiFi RGBW Smart IR Controller Compatible with Alexa Google Home Assistant IFTTT Wireless APP Remote Control…

Parameters:

Controller:
Model number: OP-GP03RGBW
Working temperature：-20-60℃
Input voltage：DC 5V~24V (It depends on what power supply you use, if you use 12V led strip, please use 12V power supply)
Output: 4 channels (RGBW)
Max output current：≤6A
Controller size：L70×W36×H15mm
Net weight：52g(set)
Gross weight：68g(set)
Static power consumption：Output power：5V:≤30W, 12V:≤72W, 24V:≤144W
Connection mode：Common anode

Remote Control:

Working voltage：3V, 1xCR2025 button Battery
Working voltage：3V, 1* CR2025 button Battery
Remote control distance：8-12m

【Tuya Smart APP】Quickly connects phone and easy to use, there are four options of “White Mode” “Colour Mode” “Scene Mode” “Schedule” to control the lights differently.can dim, change colors, and select different scene modes or custom whatever scene you want. The music mode can sync music on your phone, the colors will change with music beats sensitively. The amazing design that it support timing mode, it will turn on when the alarm clock wake you up.
【Voice Control】Works with Google Home Assistant, Alexa, IFTTT, Rokid etc smart voice device. Voice control your RGBW led light strip by speaking to smart voice device, speak out your demand, control your light strip through voice commands, you can turn on/off, change the color, dim/brighten the light strip.
【Multiple control modes】Smart phone APP control, 28 keys IR remote control&on-off keying. You can set the wireless led controller to work in hotspot mode when you are using outdoor or somewhere like in car or boat that there is no Wi-Fi network. Or connect it to your home Wi-Fi router to remote control your room decoration strip lights or TV background LED lights. Only work on 2.4G network, Unsupported 5G. Or you can use the IR remote to adjust the brightness/speed or DIY your favorite color.
【Multifunctional】White light mode, colour light mode, scene mode and timer mode for you choose. There are 8 modes in total. The top 4 are static color scene modes, and the bottom 4 are dynamic scene modes. The eight scenes can be set and edited respectively. Can set the ON/OFF status of the light according to the actual required timing. Note: after setting the time, the app on the mobile phone will exit and disconnect the WiFi. The Timer also works

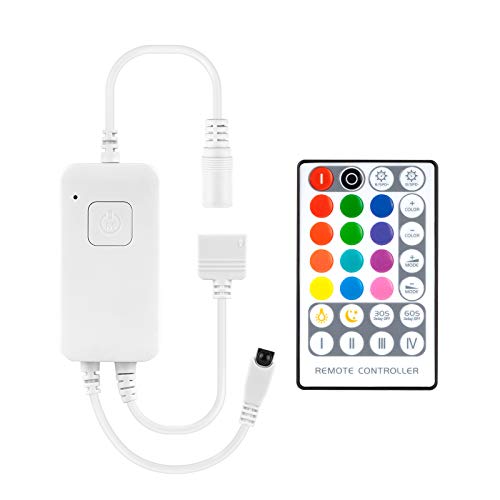

【Easy to install】Comes wih a rgbw wifi controller and a IR 28keys remote controller. Connection of this controller to power supply and led strip just take you a few minutes. (this wifi controller can support 2.4Ghz Network, but can not be used for 5.0Ghz Network) . Please note the package of this controller is not included the led strip and power supply.
