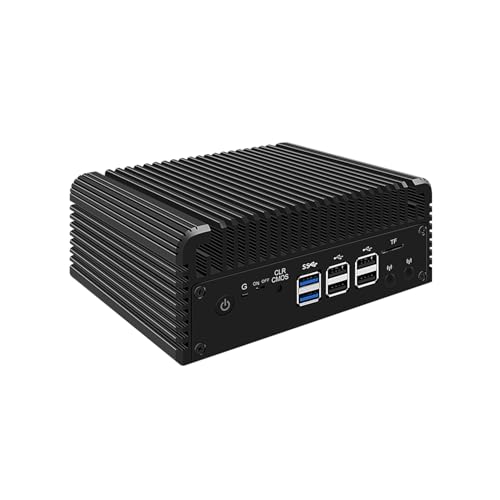

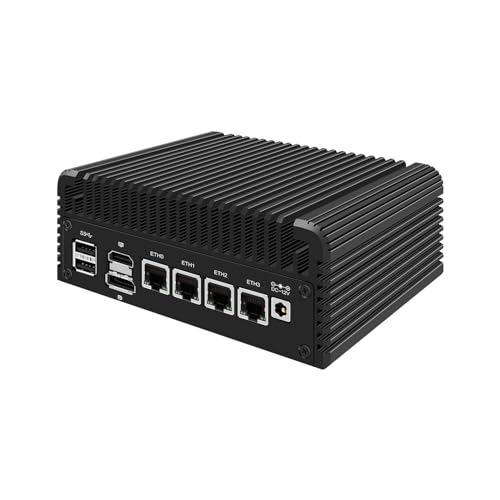

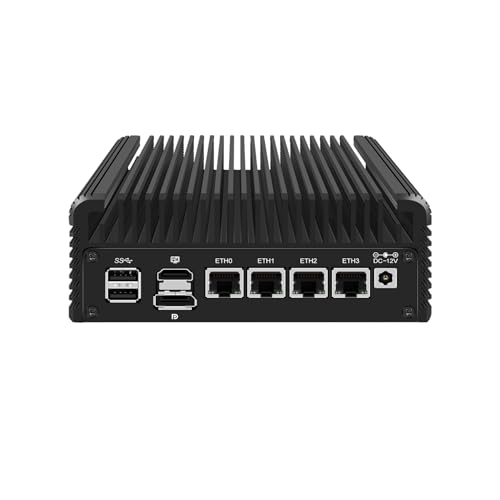

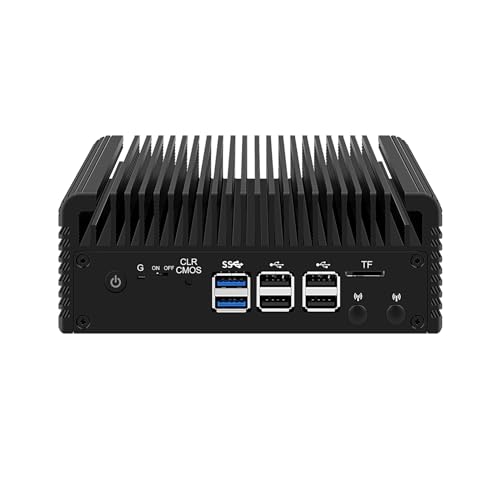

Micro Firewall Appliance, Mini PC, VPN, Router PC, Intel Alder Lake-N 12th Gen N100, HUNSN RJ35, GPIO, TF Slot, HDMI, DP, 4 x 2.5GbE I226-V, Barebone, NO RAM, NO Storage, NO System

Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN RJ35
Chassis: Aluminum with knockout hole, wiring the cables to the external
CPU: Intel Processor N100 6M Cache, up to 3.40 GHz
AES-NI Supported: Yes
Memory: 1 x SO DIMM DDR5 4800 MT/s, up to 32GB
Storage: 1 x M.2 2280 NVME x4 SSD, 1 x M.2 WiFi adaptor board for M.2 2280 NVME x1 SSD / 1 x 2.5 Inch SATA SSD/HDD, 2 choose 1
Network Card: Intel 2.5GbE I226-V, UDE built-in filter connector
I/O Interface: Power ON/OFF, GPIO, Auto Power Key, CLR CMOS, 2 x USB3.0, 6 x USB2.0,
TF Slot for Data Storage/System Boot, HDMI2.1, DP1.4, 4 x LAN, DC_IN
Expansion: 1. M.2 Key-E WiFi slot for NVME SSD, if need to use M.2 WiFi slot, remove the M.2 NVME adapter board.
2.SATA3.0 socket and WiFi socket signal, 2 choose 1, the signal will automatically switch
3.Support to expand 4 x M.2 x1/mSATA/SATA, contact HUNSN to customize
Power: DC100-240V AC/50-60hz, 12V3A
Operating Temperature: -10°c~70°c
Storage Temperature: 0°c~70°c
Relative Humidity: 5%~85% non-condensing
TDP: 6W
Cooling system: Fanless, 80 x 80mm holes, support to add 8010 fan, 2 x small 4pin fan sockets support temperature-control
Size: 145.6 x 135 x 53.6mm
Weight: 1.3kgs
Packing List: HUNSN RJ35 firewall appliance, power supply, power cord, warranty card
Function: Supports hardware auto power on enabled default, network wake-up, system power management, temperature management
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported. UEFI support only
Compatibility: firewalls for pfsense plus, opnsense and other popular open-source software solutions

HUNSN RJ35 equipped with intel gen 12th alder lake-n n100 processor, compatible with many freebsd based router systems, linux distros, or win.os supported, easy configuration and management, support intel aes new instructions
Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Compact aluminum, 12v3a power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance
RJ35 designed with power on/off, gpio, auto power key, clr cmos, 2 x usb3.0, 6 x usb2.0, tf slot for data storage/system boot, hdmi2.1, dp1.4, 4 x lan, dc_in, size at 145.6 x 135 x 53.6mm
Quiet, fanless design silent 100%, 0.00db noise makes an ideal deployment in small offices
